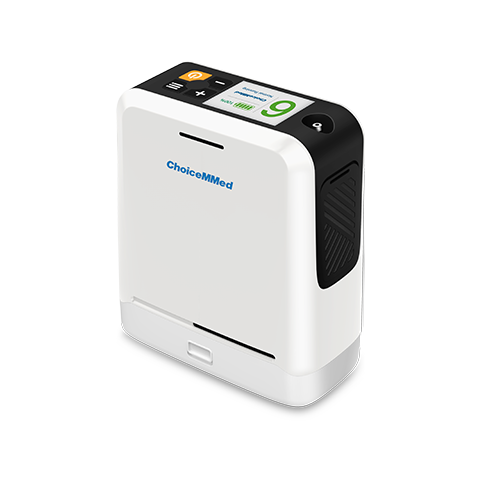

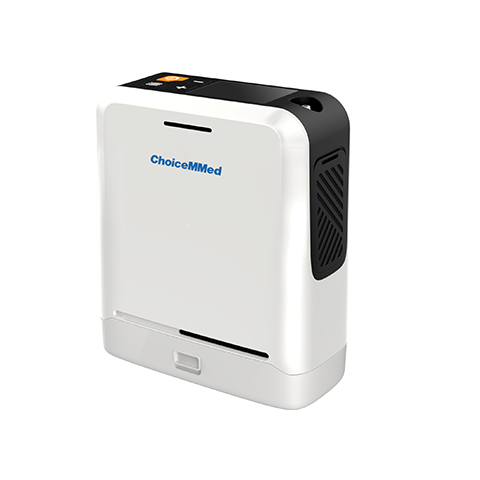

Portable Oxygen Concentrator
OCP-4/OCP-5/OCP-6

-Up to 6 flow setting
-Intelligent pulse dose oxygen delivery
-Easy to read color LCD display
-Intelligent alarm system
-Two capacity batteries are available
-Warm up 2 minutes, Oxygen concentration ≥90%




Portable Oxygen Concentrator
OCP-4/OCP-5/OCP-6





Flow Setting
OCP-4: 1-4
OCP-5: 1-5
OCP-6: 1-6
Flow Rate (mL/min)
set1: 210 mL/min
set 2: 420 mL/min
set 3: 630 mL/min
set 4: 840 mL/min
set 5: 1050 mL/min
set 6: 1260 mL/min
Size
Length: 187mm(7.36 in)
Width: 88mm(3.46 in)
Height: 217mm(8.54 in)(includes single battery)
Height: 237 mm (9.33 in)(with extended-life battery)
Weight
2.16 kg (includes single battery)
2.58 kg (with extended-life battery)
Battery Duration
Single Battery up to 6 hours
Extended-life Battery up to 12 hours
O2 concentration
90%-96%(V/V)
AC Power Supply
AC 100-240V, 50-60Hz
DC Power Supply
DC 12-16.8V
Operating
-1250 to 10000 ft(-381 to 3048 m)
